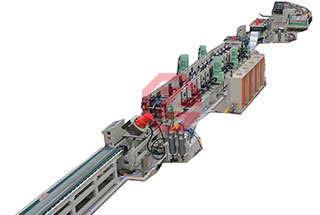

C/Z section Roll Forming Machine

This line is used to produce kinds of C/Z sections. It adopts Schneider PLC system, high degree of automation, easy to operate and efficiently. All the dimensions are processed by machining center, high precision. One operator could run the whole machine. The producing assistance time, the equipment can stay stable in producing. The max speed can up to 50m/min.

Line Speed: 50m/min

Yield Strength: ≤345Mpa

Roller Material: SKD11

Thickness Range: 2.0 to 3.0mm

Inquire Now

Email:info@corpgz.com

MAIN PARTS

The machine consists of Hydraulic Decoiler, Leveling Device, Servo Feeding Device, Punching Device, Feeding & Guiding Device, Roll Forming M/C, Straightening Device, Hydraulic Cutting Device, Automatic Discharge Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

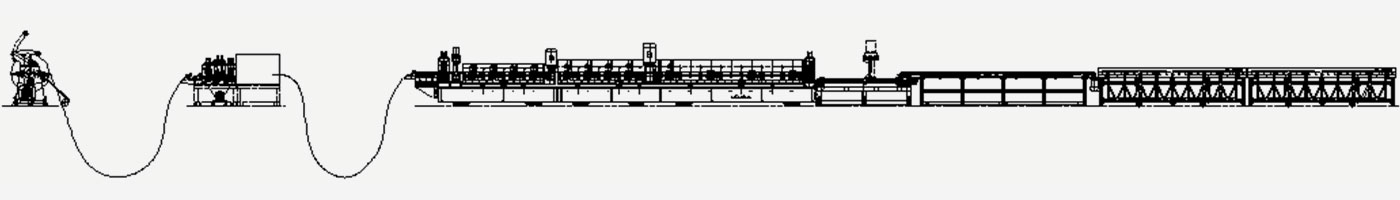

FLOW CHART

Workflow

Un-Coiler

Servo Leveling&Feeding

Punching

Feeding and Guiding

Pre-Shearing

Roll Forming

Moving Cutting

Automatic Stacker

FEATURES

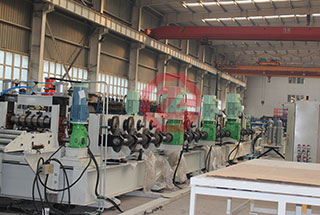

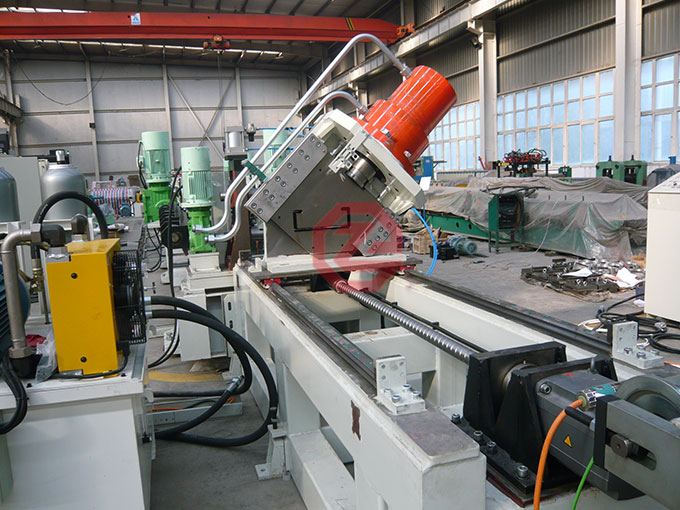

WIDTH ADJUSTING

The servo motor drives the archway sliding along the main axis through the guide rail to adjust the distance on both sides, adjusting the different width.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

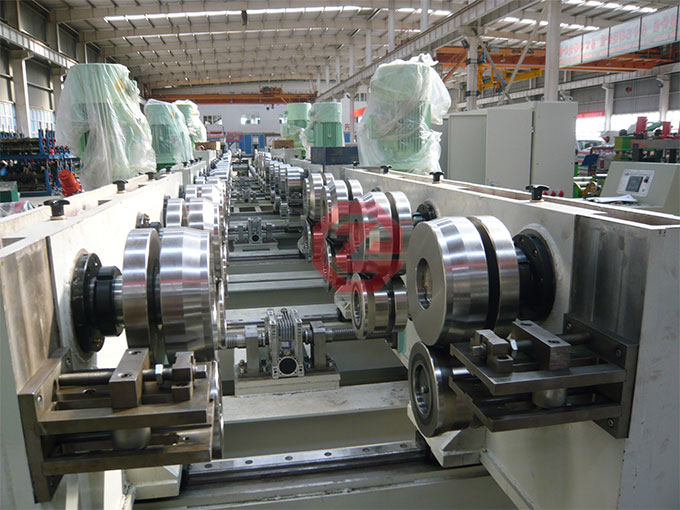

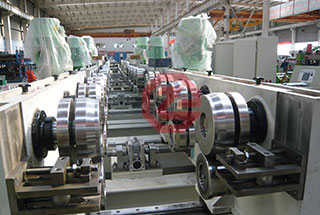

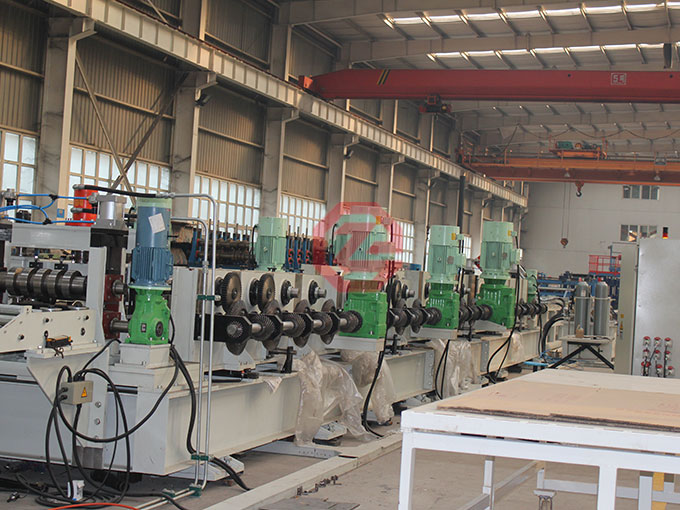

FORMING ROLLER

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		Pre-galvanised steel or black hot rolled steel etc
		Strength	MPa	≤345Mpa
		Thickness	mm	2.0mm—3.0mm
		Coil internal diameter	mm	508mm
		Coil weight	T	5T
2	Specification		mm	75-350mm
3	Line speed		m/min	50m/min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW	About 100KW
8	Electric control system			PLC automatic control system
