Cable Ladder Roll Forming Machine

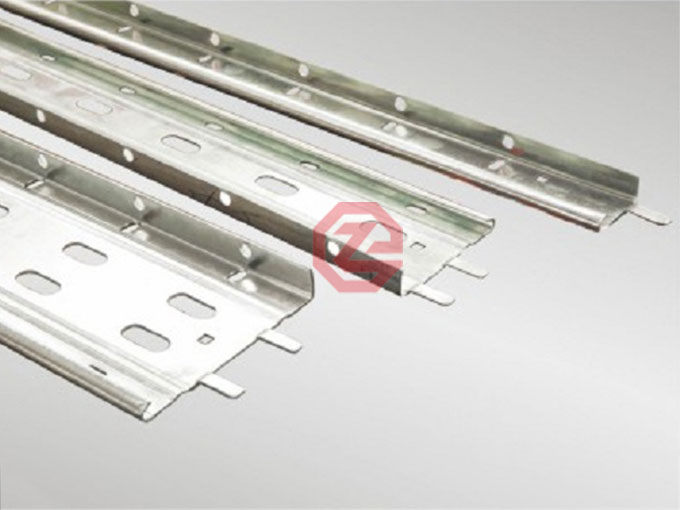

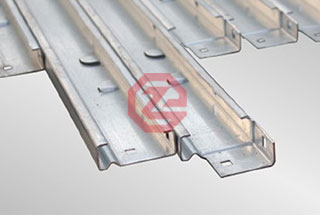

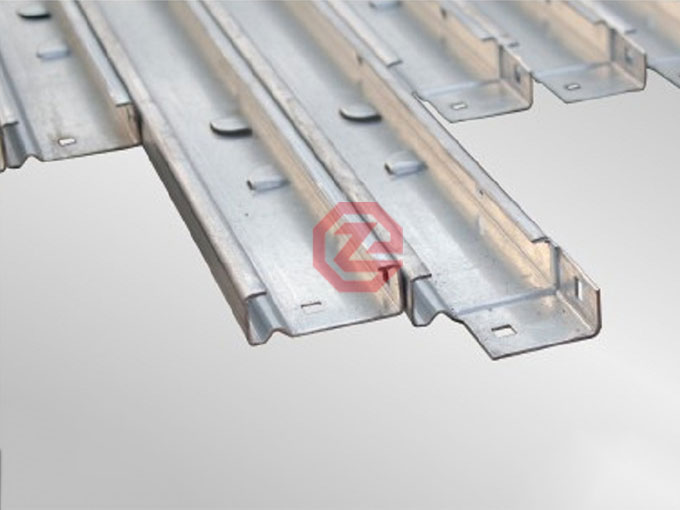

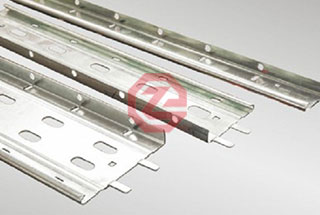

This Cable Ladder Roll Forming Machine was delivered on January 22, 2017, composed by un-coiler, servo leveling & feeding, pre-punching, shearing, roll forming, product rack, PLC control. The profiles can be changed through adjust feeding width, replacing the punching tools, adjusting the roll split sleeve etc. The production line has the characteristics of reasonable structure, simple and convenient operation, safety and reliability, short producing process and wide use of products etc. The max speed can up to 10m/min.

Line Speed: 10m/min

Yield Strength: ≤345Mpa

Roller Material: SKD11

Thickness Range: 1.5—2.0mm

Inquire Now

Email:info@corpgz.com

MAIN PARTS

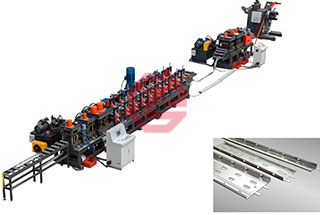

The machine consists of Hydraulic Decoiler, Leveling Device, Servo Feeding Device, Punching Device, Feeding & Guiding Device, Roll Forming M/C, Cutting Device, Rab out Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

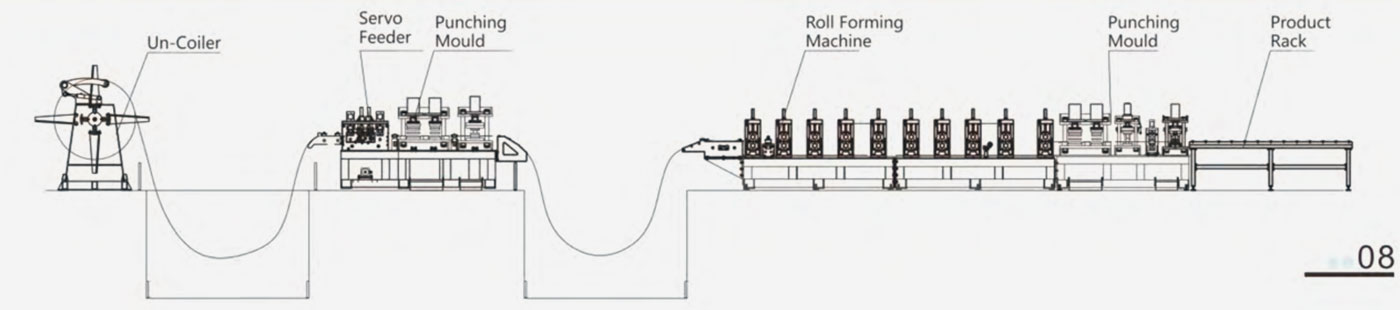

FLOW CHART

Workflow

Coil Loading

Un-Coiler

Leveling and Servo Feeding

Pre-Punching

Roll Forming

Punching

Cutting

Ran out

FEATURES

WIDTH ADJUSTING

The difference sizes are changed by quick change cassette. To produce different sizes just need to change the cassettes and the cutter, that’s ok.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

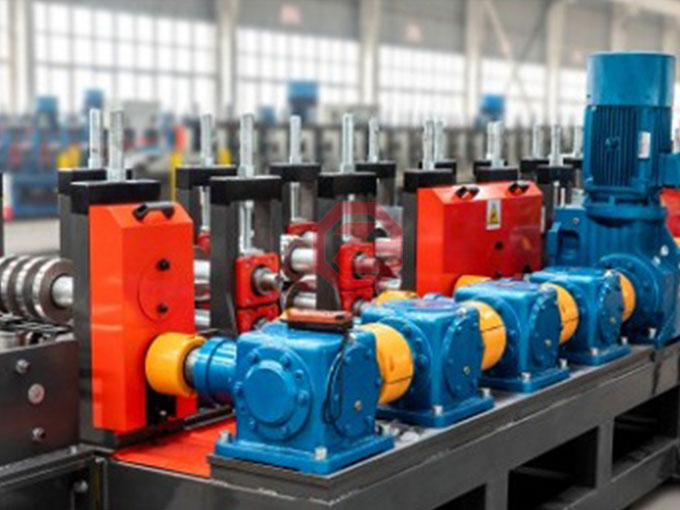

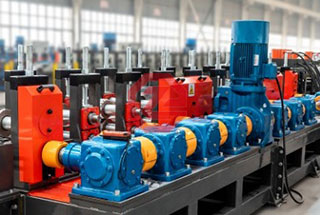

FORMING ROLLER

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		Pre-galvanised steel etc
		Strength	MPa	≤350Mpa
		Thickness	mm	1.5mm—2.0mm
		Coil internal diameter	mm	508mm
		Coil weight	T	5T
2	Specification		mm	50-200mm
3	Line speed		m/min	10m/min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW
8	Electric control system			PLC automatic control system
9	Sizes of the whole machine		m	30mx2.0mx1.7m
