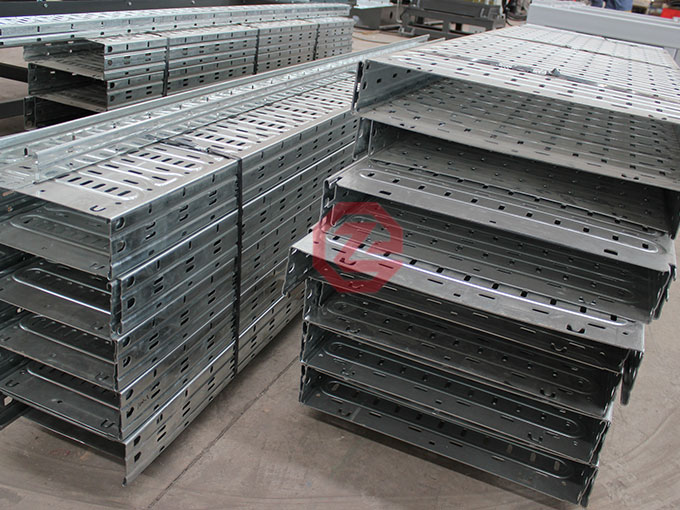

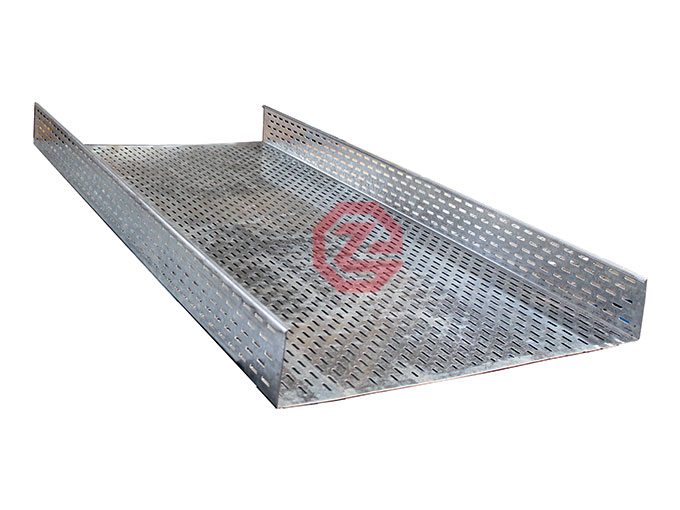

Cable Tray Roll Forming Machine

This Cable Tray Roll Forming Machine was delivered on January 22, 2017, composed by un-coiler, servo leveling & feeding, punching, auto transport, roll forming, product rack, PLC control. One worker can operate the whole line. More than 3000 groups workpieces can be set for one production. The production line is equipped remote controller, safe light curtain, changing mould system, CNC auto feeding and profile size adjusting system. The max speed can up to 25m/min.

Line Speed: 25m/min

Yield Strength: ≤235Mpa

Roller Material: SKD11

Thickness Range: 1.6 to 3.2mm

Inquire Now

Email:info@corpgz.com

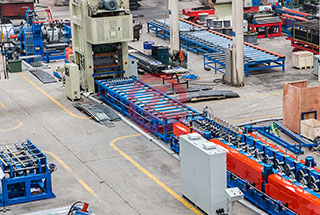

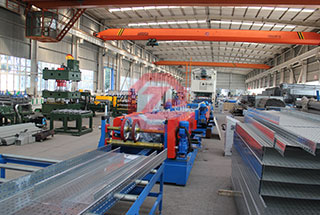

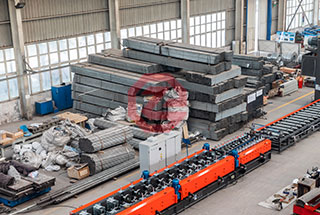

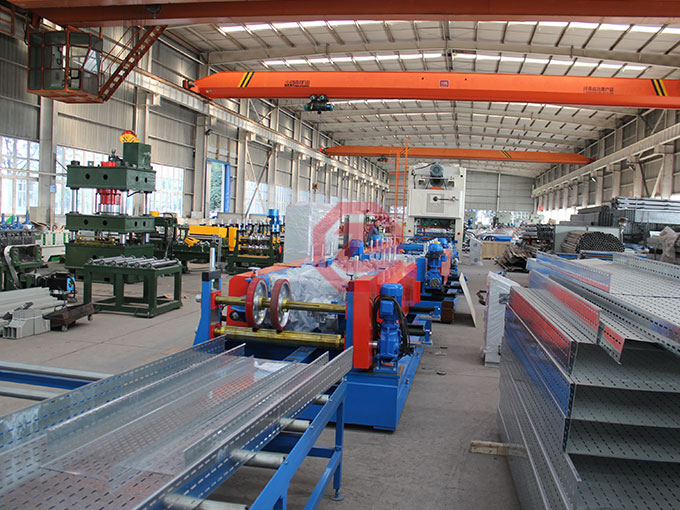

MAIN PARTS

The machine consists of Hydraulic Decoiler, Leveling Device, Servo Feeding Device, Punching Device, Feeding & Guiding Device, Roll Forming M/C, Flying Cutting Device, Automatic Stacking Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

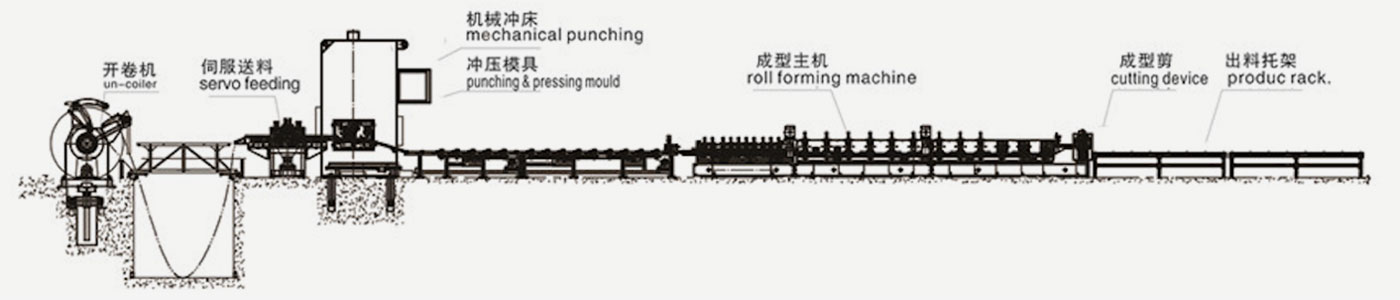

FLOW CHART

Workflow

Coil Loading

Un-Coiler

Leveling and Servo Feeding

Punching

Flying Cutting

Pressing Rib

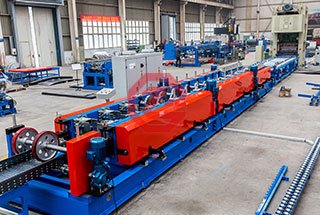

Roll Forming

Automatic Stacking

FEATURES

WIDTH ADJUSTING

The servo motor drives the archway sliding along the main axis through the guide rail to adjust the distance on both sides, adjusting the different width.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

FORMING ROLLER

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		Pre-galvanised steel etc
		Strength	MPa	≤350Mpa
		Thickness	mm	1.6mm—3.2mm
		Coil internal diameter	mm	508mm
		Coil weight	T	10T
2	Specification		mm	100-600mm
3	Line speed		m/min	25m/min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW	About 65KW
8	Electric control system			PLC automatic control system
9	Sizes of the whole machine		m	30mx2.0mx1.7m
