Silo Plate Roll Forming Machine

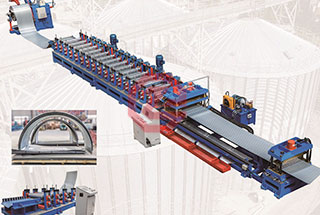

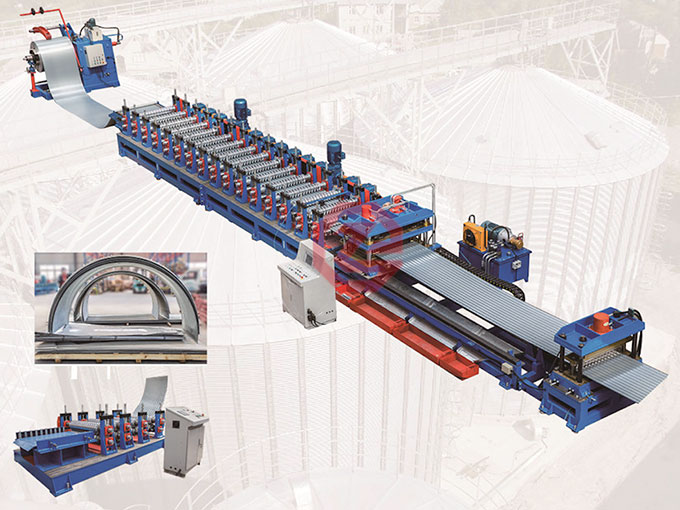

Each component of the Silo Plate Roll Forming Machine ensures stable and reliable running, durable, convenient operation & maintenance. Human-computer interface adjusts the arc radius. The equipment with high flexibility, could set the parameters to control punching positions and quantities, workpiece length, arc radius. Produced profiles with high precision. Corrugation size and curving radius arc with high accuracy uniformity, fully meet the multi-point connection assembly requirement. The production speed can reach 25m/min.
Line Speed: 25m/min
Yield Strength: ≤345Mpa
Roller Material: SKD11
Thickness Range: 1.2mm
MAIN PARTS
FLOW CHART
FEATURES
parameter
MAIN PARTS

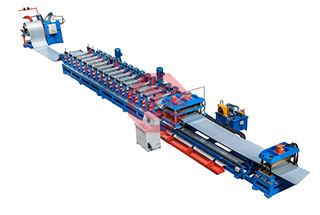

The machine consists of Decoiler, Feeding and Guiding Device, Roll Forming M/C, Holes Pressing Device, Hydraulic cutting device, Automatic Discharge Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

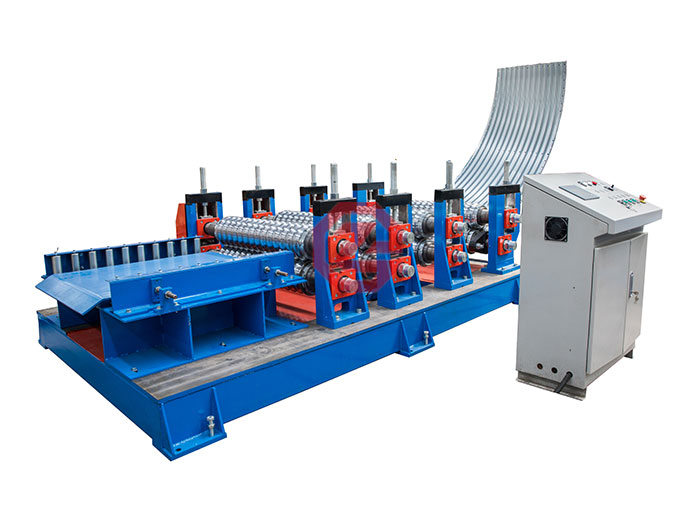

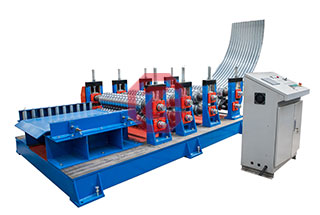

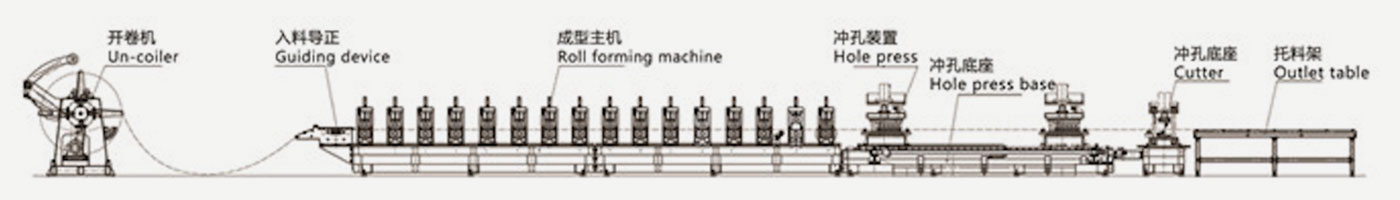

FLOW CHART
Workflow
1
Coil Car
2
Un-Coiler
3
Feeding and Guiding
4
Roll Forming
5
Straightening
6
Punching
7
Hydraulic Cutting
8
Automatic Discharging
FEATURES
WIDTH ADJUSTING
The difference sizes are changed by quick change cassette. To produce different sizes just need to change the cassettes and the cutter, that’s ok.
FORMING CRAFT
The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.
FORMING ROLLER
The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.
ROLLER SHAFT
The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.
parameter
No. Item Unit Parameters
1 Suitable material Type          Galvanized steel
Strength MPa ≤345Mpa
Thickness mm 1.2mm
Coil internal diameter mm 508/610mm
Coil weight T 10T
2 Specification mm 952mm
3 Line speed m/min 10m/min
4 Roller material   D2 quenching treatment
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power KW
8 Electric control system   PLC automatic control system
