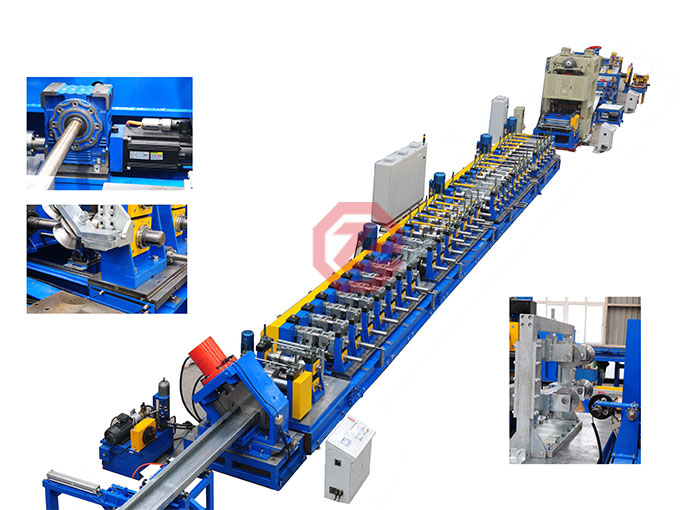

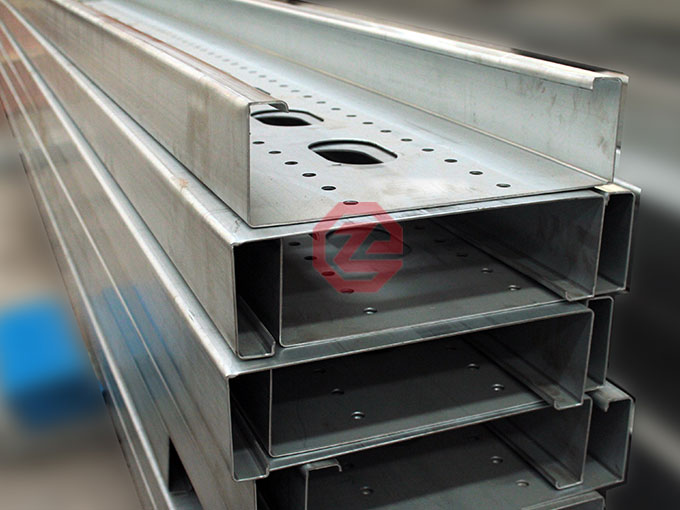

Big C Profile Roll Forming Machine

Big C Profile Roll Forming Machine was delivered out on December 13, 2016. It is used for production of the medium-thickness plate with intelligent flexible high-speed punching, laser marking, 315T cutting without waste. It takes only 3 minutes to process the stepless adjustment for height, width and pattern size for 2.2-5.0mm profiles. The production line adopts Ethernet, CANopen communication technology to monitor and collect the production data, alarm of all parts working condition. The communication ports can be connected with the MES management system for intelligent manufacturing. With a U disk or CF card, you can input/output production data and alarm information for production management.

Line Speed: 20m/min

Yield Strength: ≤345Mpa

Roller Material: SKD11

Thickness Range: 2.2-5.0mm

Inquire Now

Email:info@corpgz.com

MAIN PARTS

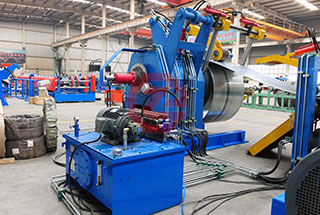

The machine consists of Hydraulic Decoiler, Leveling Device, Online welding Device, Servo Feeding Device, Punching Device, Feeding & Guiding Device, Roll Forming M/C, Hydraulic Cutting Device, Ran-out Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

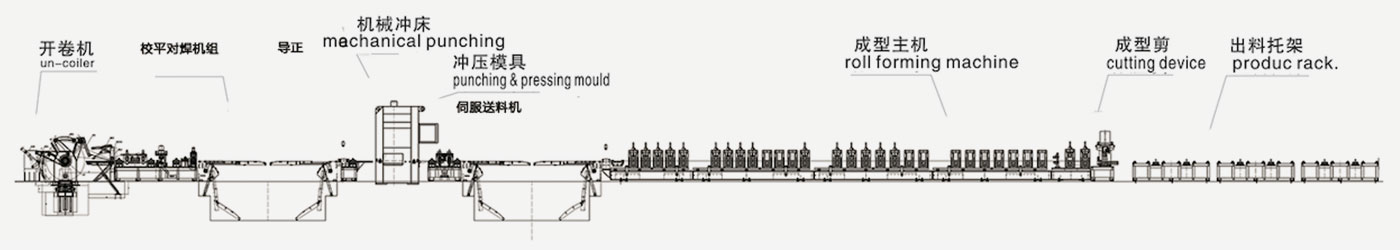

FLOW CHART

Workflow

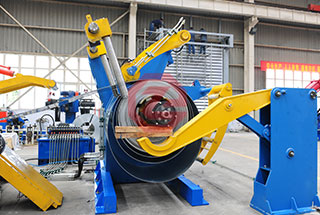

Uncoiling

Leveling and welding

Servo Feeding

Punching

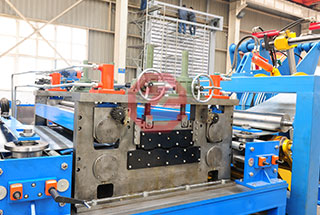

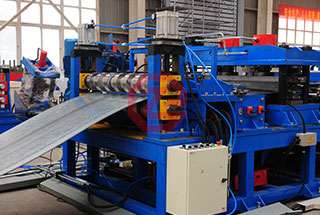

Roll Forming

Straightening

Cutting

Ran out

FEATURES

WIDTH ADJUSTING

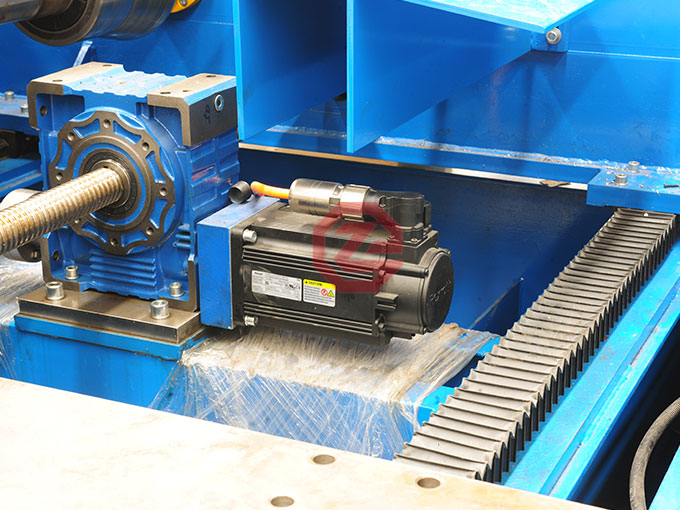

The servo motor drives the archway sliding along the main axis through the guide rail to adjust the distance on both sides, adjusting the different width.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

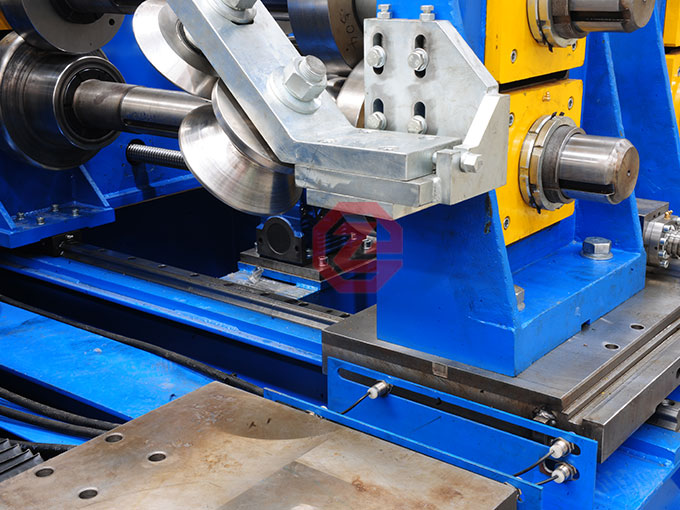

FORMING ROLLER

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		Q300 cold-rolled steel plate, galvanized plate, color-paint plate, stainless steel plate
		Strength	MPa	≤345Mpa
		Thickness	mm	2.2-5.0mm
		Coil internal diameter	mm	508mm
		Coil weight	T	10T
2	Specification		mm	300mm—450mm
3	Line speed		m/min	20 /min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW	70KW
8	Electric control system			PLC automatic control system
