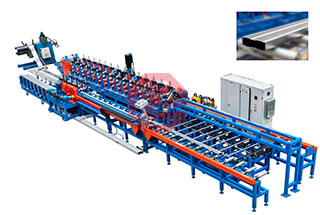

Box Beam Roll Forming Machine

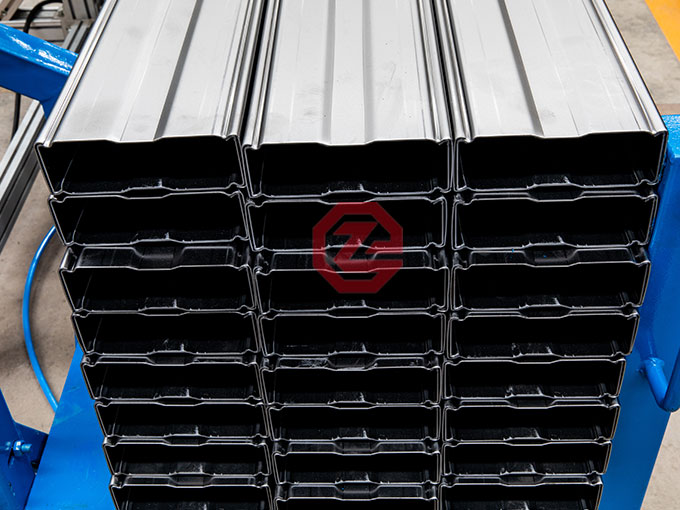

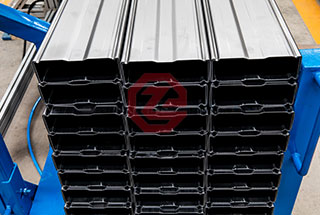

This machine includes uncoiling, leveling, forming shear, transverse movement, turnover, boxing, stacking processing to finish online automatic forming and boxing functions. All the dimensions are processed by machining center, high precision. It is possible to change sizes quickly. The speed of the production line reaches 20m/min, which saves manpower and greatly improves the efficiency of the production line. The beam has the advantages of his precision and strong loading capacity, it is deeply favored by customers.

Line Speed: 20m/min

Yield Strength: ≤345Mpa

Roller Material: SKD11

Thickness Range: 1.2 to 2.0mm

Inquire Now

Email:info@corpgz.com

MAIN PARTS

It consists of Hydraulic Decoiler, Feeding & Guiding Device, Leveling Device, Feeding Device, Roll Forming M/C, Hydraulic Cutting Device, Ran Out Table, Crimping Device, Ran Out Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

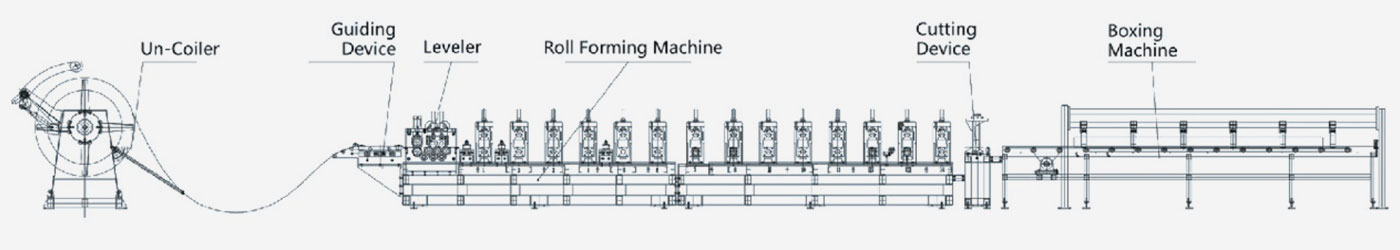

FLOW CHART

Workflow

Un-Coiler

Leveling

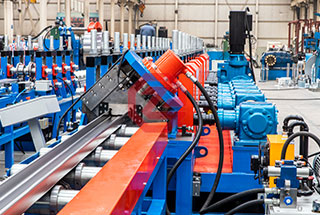

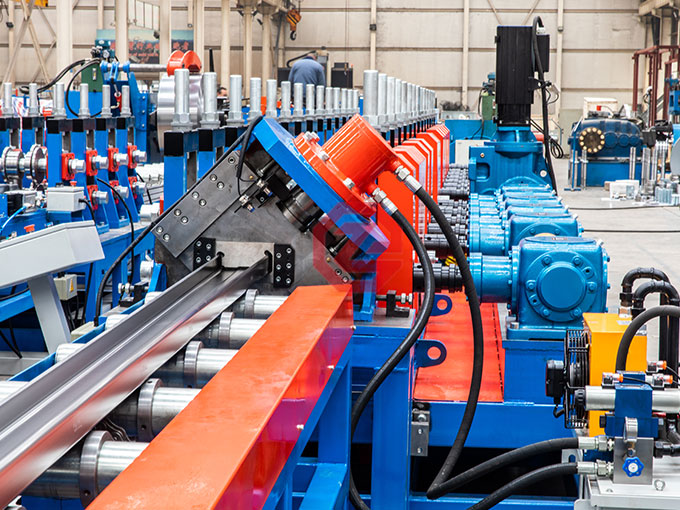

Roll Forming

Hydraulic Cutting

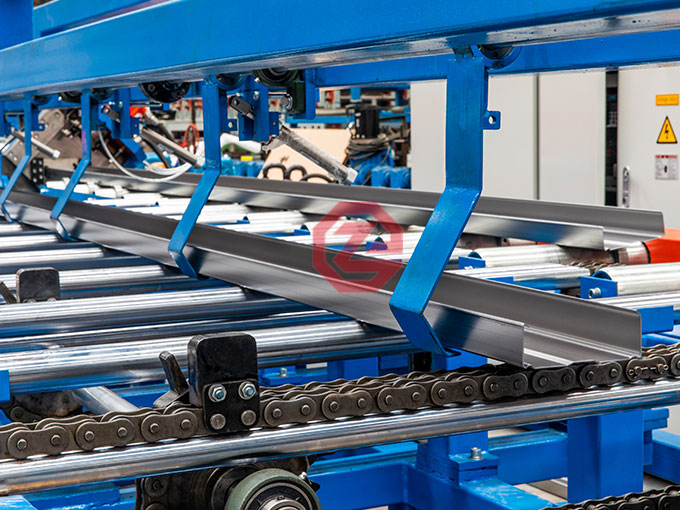

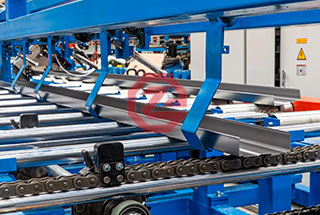

Transverse System

Turnover Platform

Boxing Device

Ran-out Table

FEATURES

WIDTH ADJUSTING

To produce difference widths, you just need to change some rollers and spacers, very easy. We can also design the auto width adjusting system if needed.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

FORMING ROLLER

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		SS400/490 etc
		Strength	MPa	235Mpa
		Thickness	mm	1.2/1.5/1.7/2.0mm
		Coil internal diameter	mm	508mm
		Coil weight	T	5T
2	Specification		mm	550mm
3	Line speed		m/min	20m/min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW	About 35KW
8	Electric control system			PLC automatic control system
