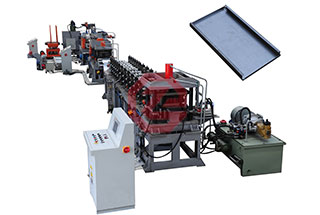

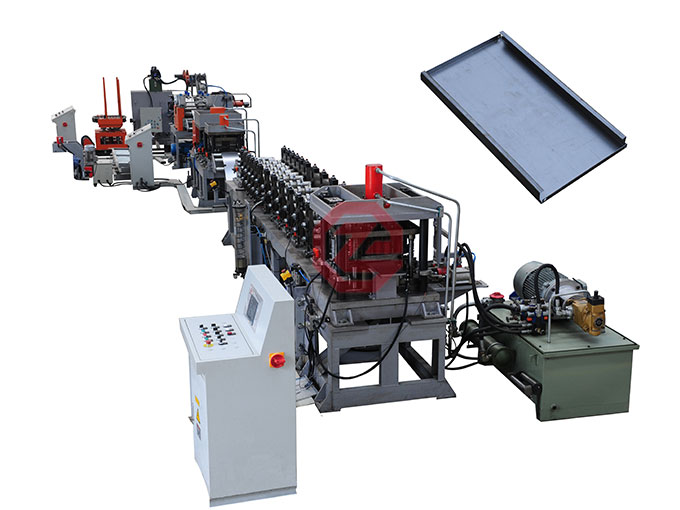

Shelving Panel Roll Forming Machine

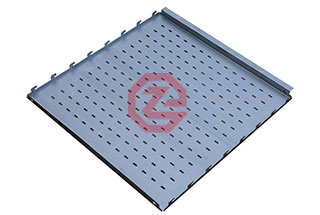

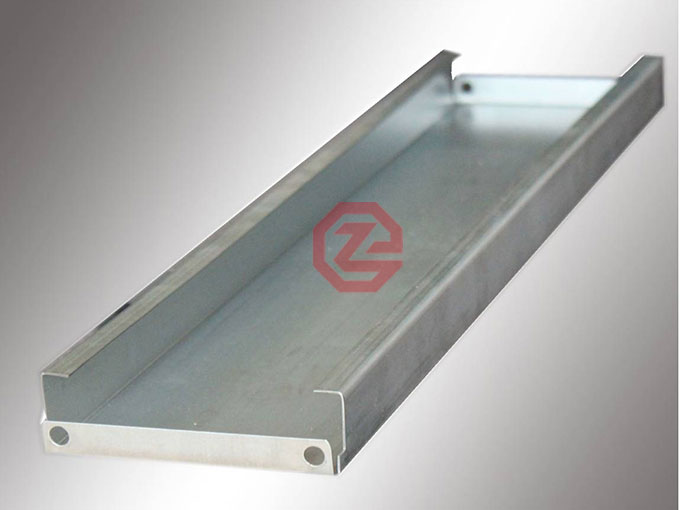

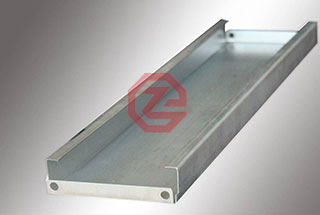

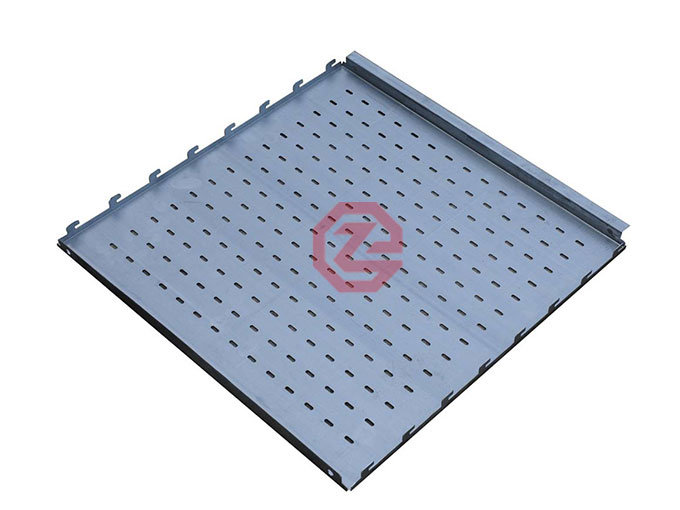

This machine is used to produce kinds of shelving panels. It adopts Siemens or Schneider PLC system, high degree of automation, easy to operate and efficiently, the max speed can up to 6-9 pieces/min. All the dimensions are processed by machining center, high precision.

Line Speed: 6-9PCS/min

Yield Strength: ≤235Mpa

Roller Material: SKD11

Thickness Range: 0.5—1.0mm

Inquire Now

Email:info@corpgz.com

MAIN PARTS

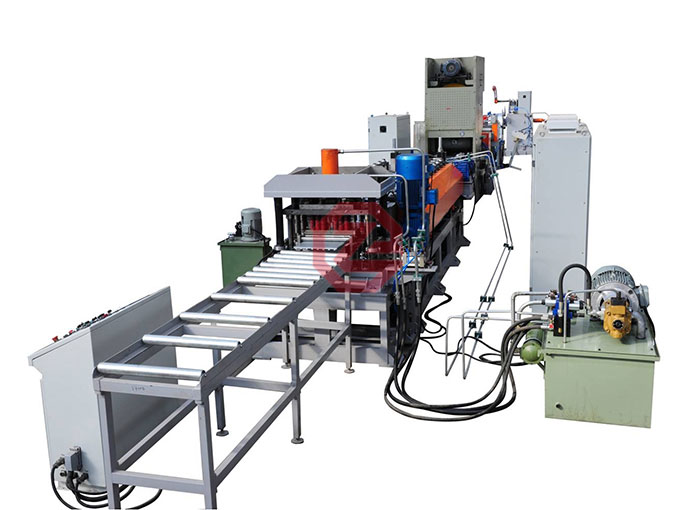

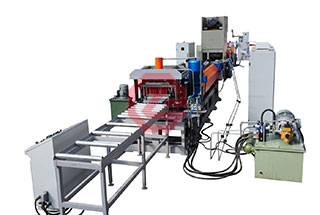

It consists of Hydraulic Decoiler, Leveling Device, Servo Feeding Device, Punch& Notch Device, Feeding & Guiding Device, Side Edge Roll Forming M/C, Cutting and Bending Device, Ran-out Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

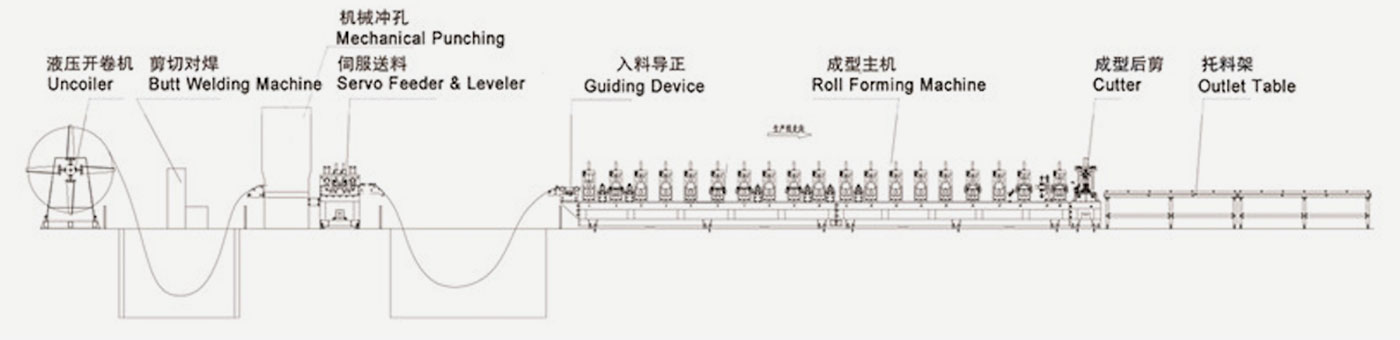

FLOW CHART

Workflow

Loading Car

Uncoiling

Leveling

Servo Feeding

Notching&Punching

Side Roll Forming

Cutting&Bending

Ran Out

FEATURES

WIDTH ADJUSTING

To produce difference widths, you just need to change some rollers and spacers, very easy. We can also design the auto width adjusting system if needed.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

FORMING ROLLER

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		Q300 cold-rolled steel plate, galvanized plate, color-paint plate, stainless steel plate
		Strength	MPa	≤235Mpa
		Thickness	mm	0.5—1.0mm
		Coil internal diameter	mm	508mm
		Coil weight	T	5T
2	Specification		mm	280mm—680mm
3	Line speed		pieces/min	6-9 pieces/min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW	21.5KW
8	Electric control system			PLC automatic control system
9	Dimension(LWH)		m	20mX5.0mX2.1m
