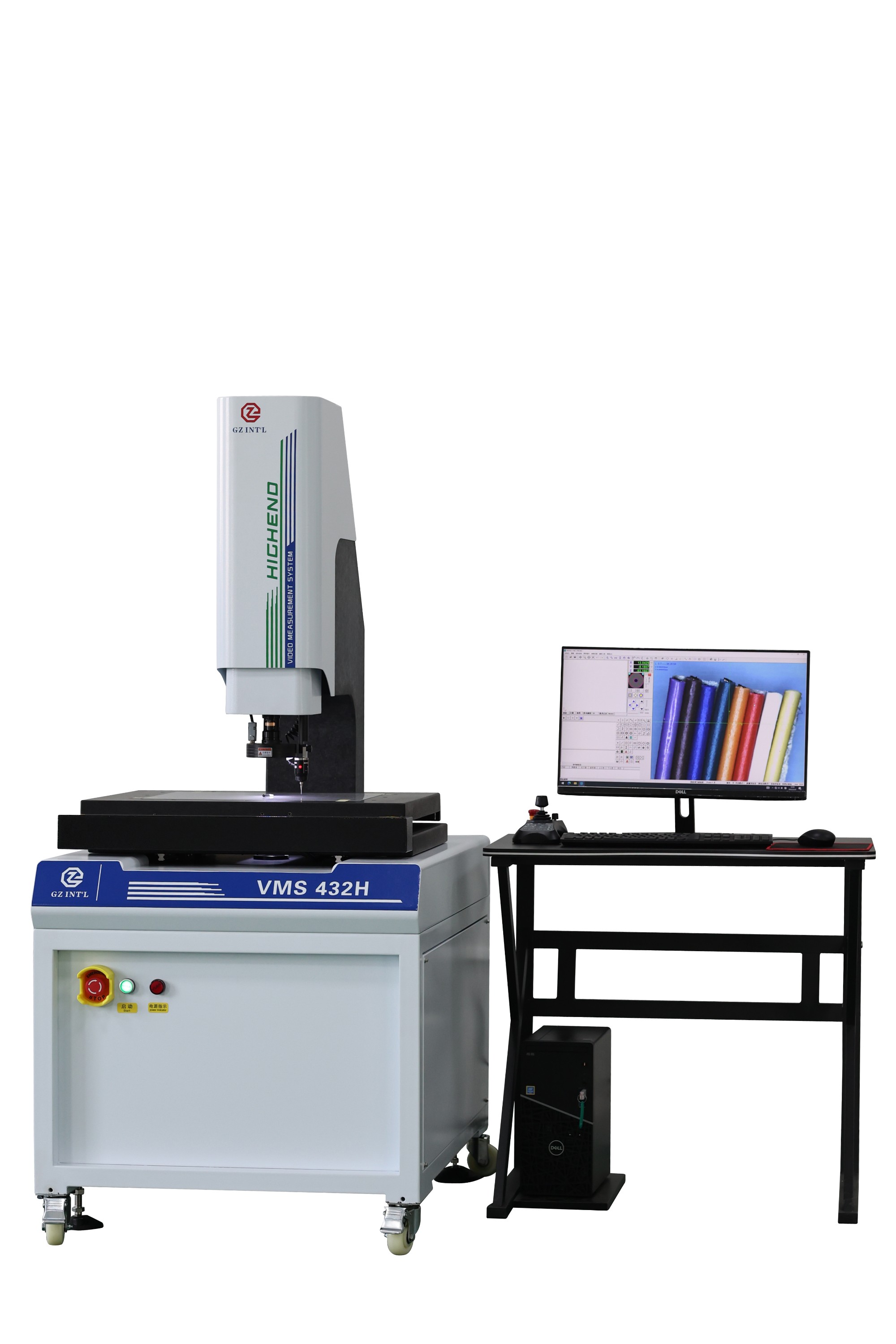

VMS432H + TOUCH PORBE

GZ CNC Video Measuring Machine VMS-H series is an automatic optical image measuring instrument ,equipped with powerful software and hardware technology, which can automatically accurate measure points, lines, circles, arcs, ellipses, angles, curves, lengths, widths, heights, hole distances, space distances, Pin spacing, thickness, arc, diameter, radius, groove, R angle and other geometric elements. It adopts original imported screw driving and servo control technology, and combined with accurate measurement software to achieve efficient and accurate mass products measurement, to provide help for the precision work-parts inspection and quality control. It is widely used in industries such as hardware, plastics, electronics, molds, hardware processing, mobile phone accessories, computer accessories, auto parts, clocks and watches, circuit boards and other industries.

Optical Lens: Image magnification 28X-180X

CCD: HIKROBOT 1.3 million pixel digital camera

X/Y axis Measuring Accuracy: E2(X/Y)=（2.0+L/200）

Grating ruler: LAMOTION 0.5um high precision metal patch ruler

Inquire Now

Email:info@corpgz.com

MAIN PARTS

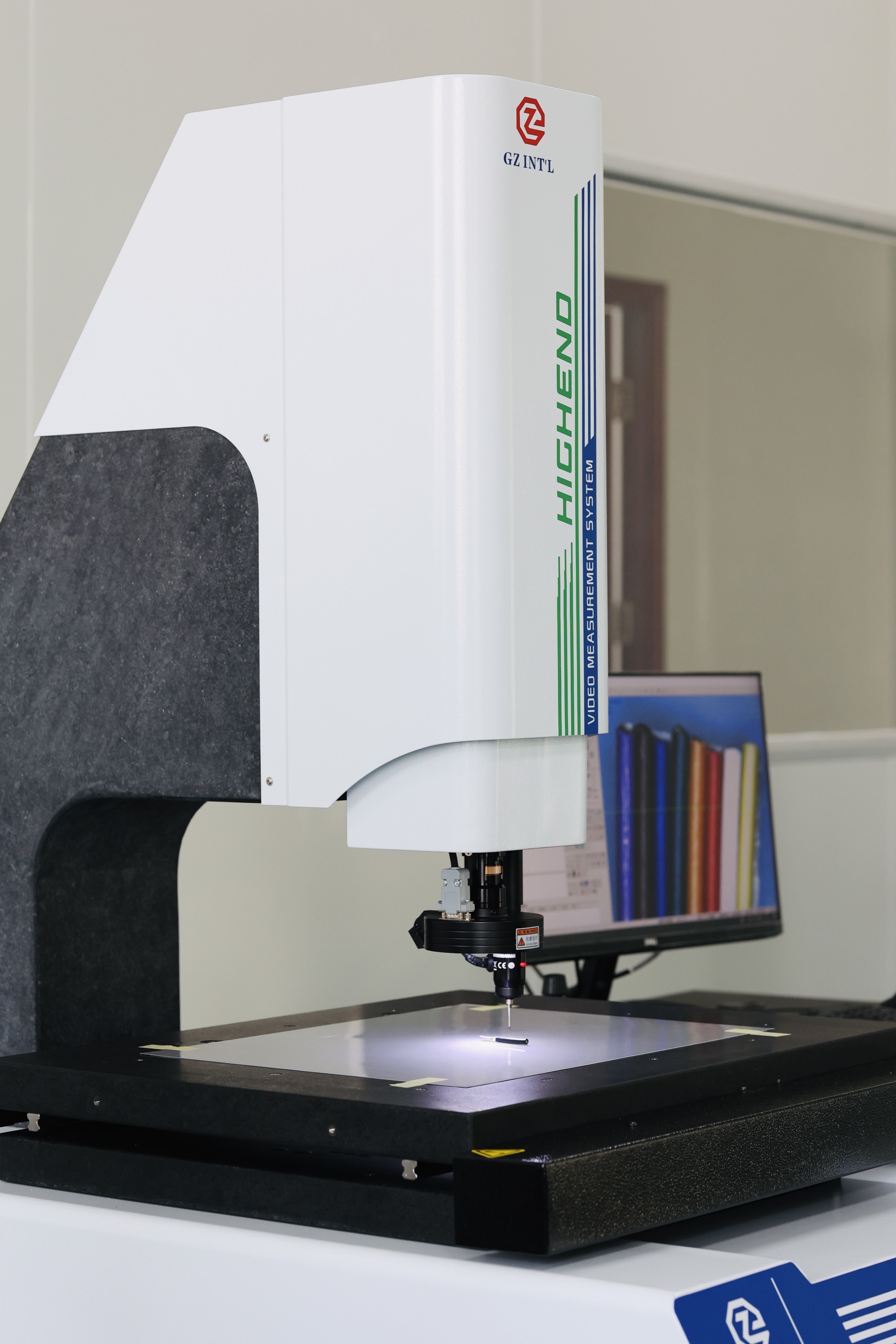

The machine consists of Motor, Guide, Grating ruler, Optical Lens Cabinet, Beautiful, concise and generous appearance design.
Each part adopts famous and stable components, each component uses high quality material, and motor control system use advanced and reliable brand. Each unit is running reliable, long use and convenient operation and maintenance can be insured.

FEATURE

Natural Granite

00-grade natural granite base, column and worktable make it strong rigidity and small deformation to ensure stable accuracy.

Precise Positioning:

Precise ball screw drive design, realizing fast movement and precise positioning.

Precision Linear Guide:

Three-axis adopts precision linear guide to ensure stable accuracy and machine service life.

Servo Motor:

Adopt servo motor to ensure positioning accuracy, thereby ensuring repeatability.

PARAMETERS

Model		VMS-322H	VMS-432H	VMS-542H
Travel (mm)		300X200X200	400X300X200	500X400X200
Dimension (L)X(W)X(H)(mm)		660X900X1700	880X1000X1700	1000X1100X1750
Weight(kg)		250	280	350
Measuring Load (kg)		25	30	35
X/Y axis Measuring Accuracy (μm)		E2(X/Y)=（2.0+L/200）
Grating ruler		LAMOTION 0.5um high precision metal patch ruler
Guide		Taiwan SHAC high precision linear guide
Drive Method		Taiwan SHAC high-precision ball screw
CCD		HIKROBOT 1.3 million pixel digital camera
Lighting	Under contour light	LED parallel profile cold light
	Surface Light	Programmable LED four-ring and eight-zone surface cold light source with laser pointer
Optical Lens		Original POMEAS high-definition manual zoom with position lens (image magnification 28X-180X)
Motor		Three-axis original Japan Nidec servo motor
Control System		ACT420 precision control system
Measuring Software		Precision measurement software INSPEC-CNC
Working Environment		Temperature 20℃±3℃, temperature change <2℃/hr, humidity 30～80%
Power		220V/50Hz/5A

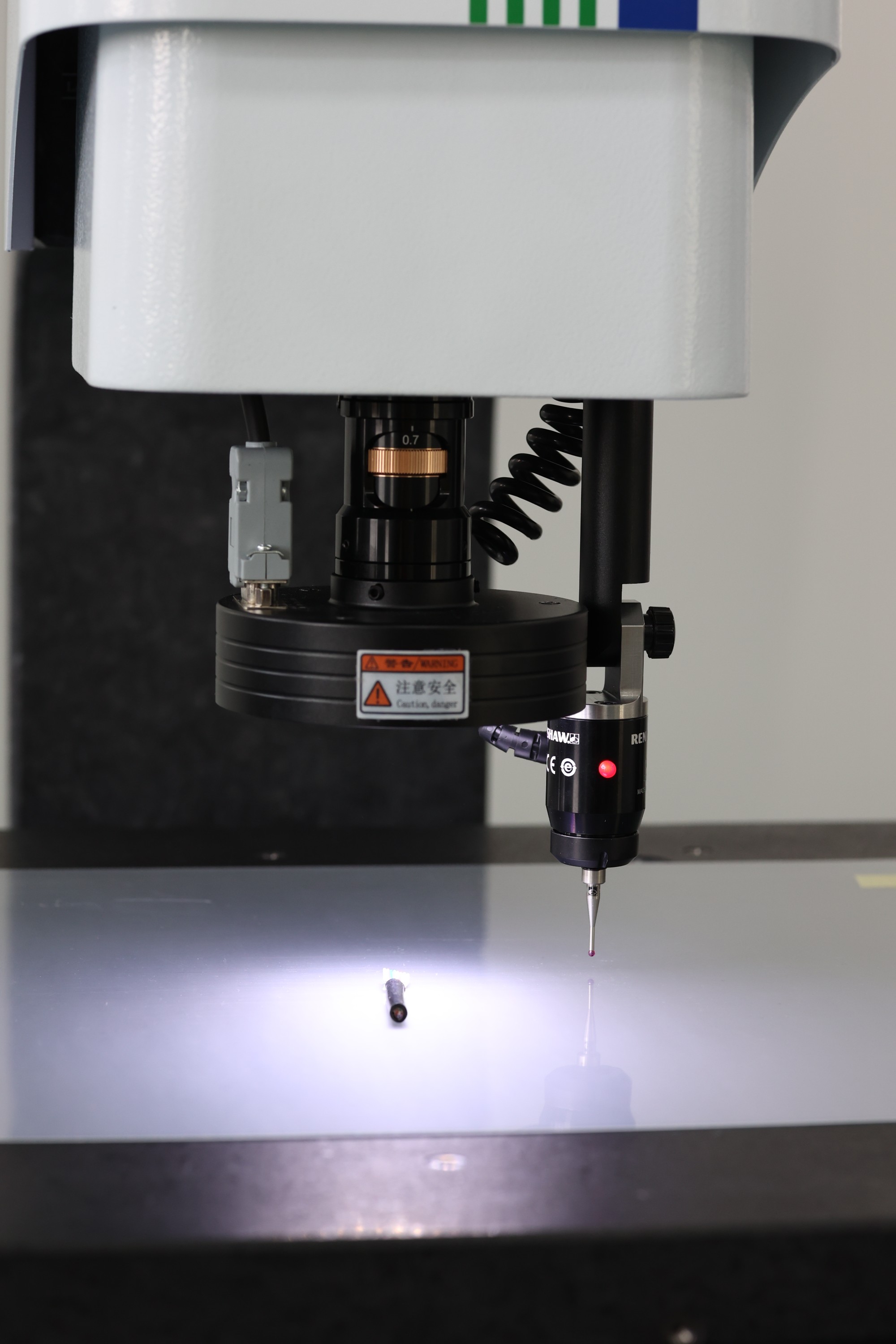

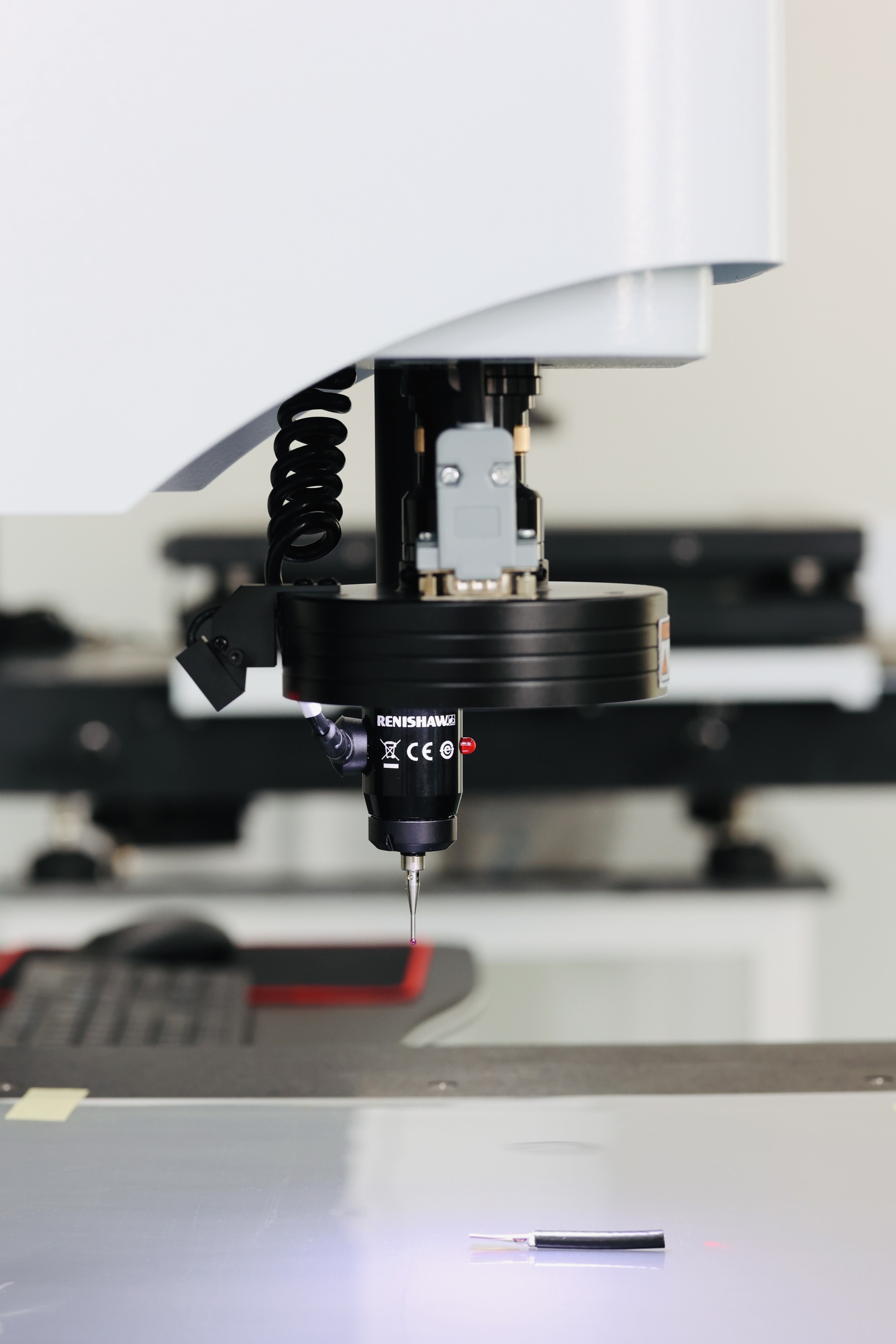

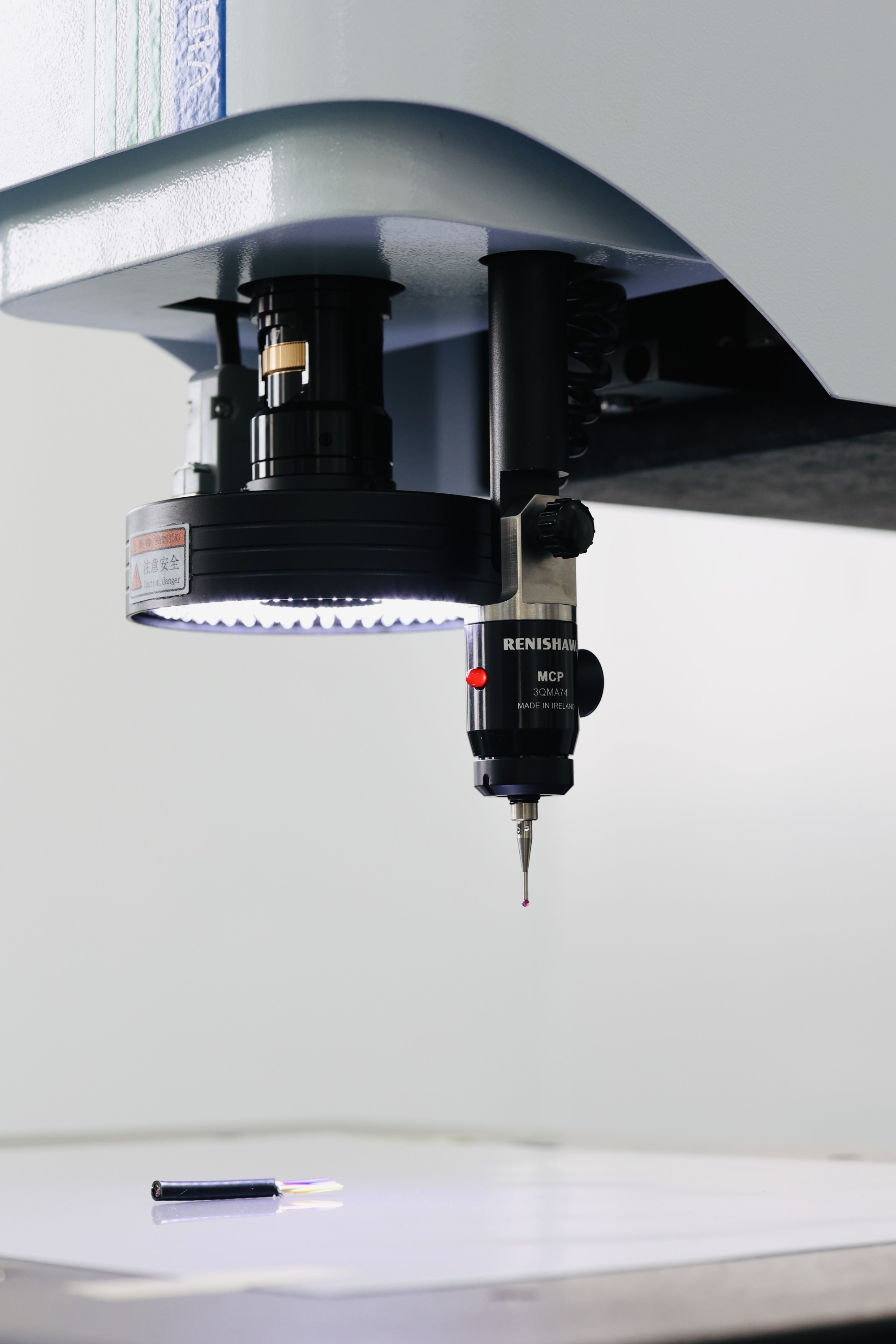

Remarks: Domestic/imported probe and 3D measuring software can be selected to achieve precision height measurement function.
